Casa > Prodotti> Amplificatore di rf> Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system

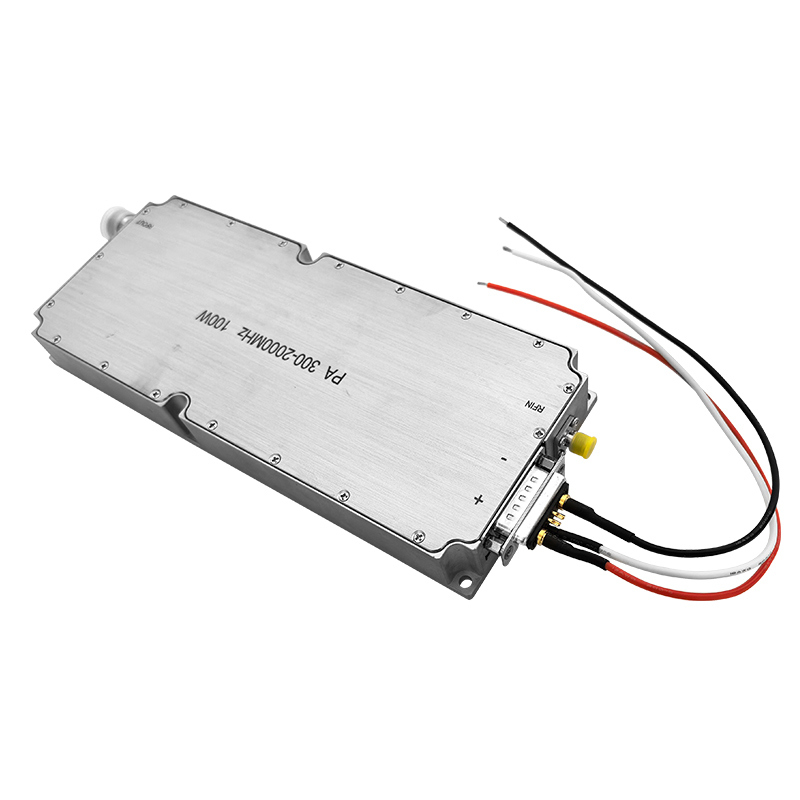

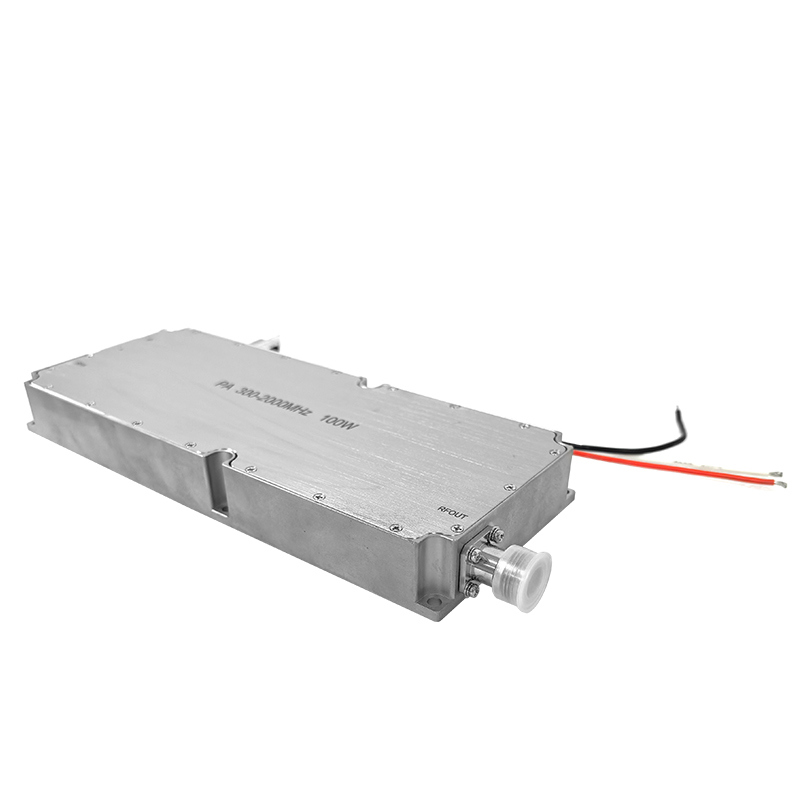

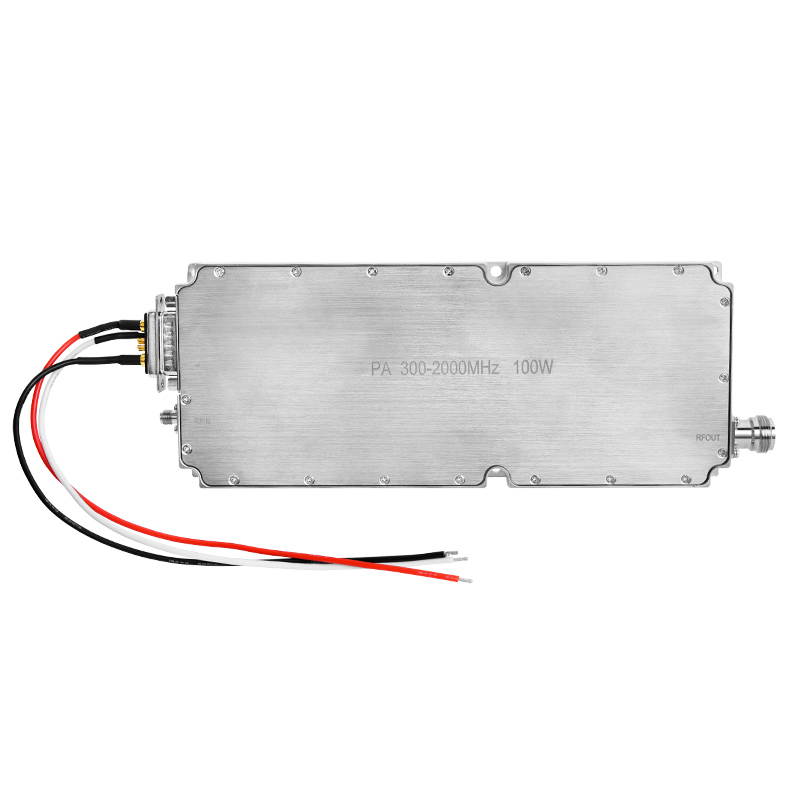

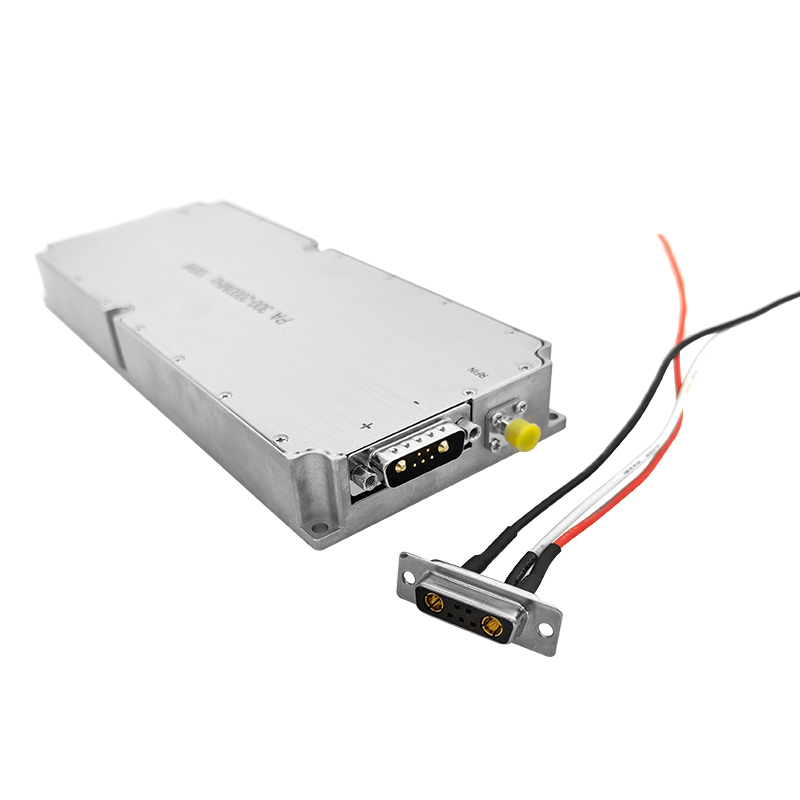

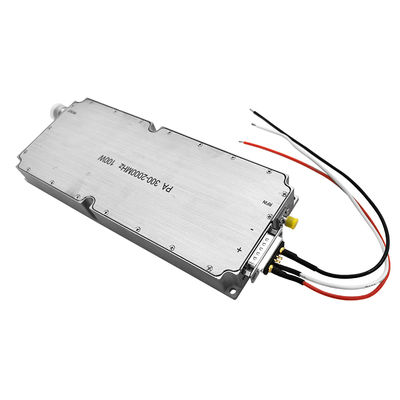

Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system

Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system
Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system
Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system
Informazioni di base
Luogo di origine: Cina
Marca: TeXin
Certificazione: SGS,ISO9001
Numero di modello: TX-CD50W
Quantità di ordine minimo: 1
Prezzo: Negoziabile
Imballaggi particolari: Caso o scatola durevole
Tempi di consegna: 3-5 giorni
Termini di pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione: 50,00PCS/Month
Miglior prezzo Contattaci
Informazioni dettagliate
Frequenza: 300-2000 MHz (personalizzato) Tensione di prova: 28-32V
Attuale: 3.6A Produzione: 50 W.
Guadagno: 47 dBm Stabilità dell'uscita: 1db
Connettore: N/ femmina Dimensione della conchiglia esterna: 153*80*22mm
Peso: 422 g Temperatura di lavoro: -40~+65
Materiale a conchiglia: Alluminio
Evidenziare:

wide band RF amplifier module

,

300-2000mhz power amplifier

,

FPV drone jammer module

Descrizione di prodotto

Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system
This wide band wireless 300-2000MHz 50W/100W power amplifier module covers most drone FPV signals and can effectively interfere with the communication link between the drone and control end. We provide solutions with different wattages (30W, 50W, 100W) according to customer needs.
The wide band power amplifier jammer module can be applied in areas with high requirements for low-altitude safety, such as airports, military restricted areas, large-scale event venues, chemical parks, and nuclear power plants. For example, at airports, it can prevent drones from entering no-fly zones, ensuring the normal takeoff and landing of flights; at large event venues, it can prevent illegal drone filming, maintaining safety and order at events.
Technical Parameters
206*117*21mm
1366g
28-32V
Product Specification
No. Item Data Unit
1 Frequency 300-2000 MHz
2 Test voltage 28-32 V
3 Current 6.5 A
4 Output 50 W
5 Gain 47 dB
6 Output stability 1 dB
7 Input stability 0-10 dB
8 Connector F/ Female
9 Output connector VSWR ≤1.30 (No power and VNA test)
10 Power supply wire Red+Black+Enable wire
11 Enable Control High ON Low Off
12 Out shell Size 206*117*21 mm
13 Mount hole 199*110 mm
14 Weight 1366 g
15 Work Temperature -40~+65 ℃
16 Out shell material Aluminum
17 Vibration need Car load OK
Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system 0 Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system 1 Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system 2 Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system 3
Product Features
  • Wideband, precise coverage, and strong adaptability: Focusing on the 300-2000MHz core frequency band, it's compatible with multiple brands and types of drones without additional debugging.
  • High power and high gain for outstanding transmission capabilities: 50W high power output paired with 47dB high gain.
  • Strong adaptability and high durability: Utilizing industrial-grade components and an anti-interference shielding design, it can withstand temperatures ranging from -20°C to 60°C and humidity levels of 5% to 95%.
  • Lightweight, easy to install, and highly practical: The module weighs less than 150g and is compact.
Product Application
Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system 4
FAQ
Are you a manufacturer?
Yes, our factory is located in Longgang District, Shenzhen, welcome to visit us here
MOQ?
1 to 100pcs
Payment term?
T/T, Alibaba Trade Assurance(Visa, Master card, E-checking,etc), WestUnion, Paypal, etc
How to proceed with an order?
A. Let us know your requirements and product application through inquiry on Alibaba website
B. We quote according to your specification
C. Customers agree with the quotation and make the payment
What do if I receive defective products?
Our strict quality control will ensure a 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you a new electronic part or product.
Factory Pictures
Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system 5 Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system 6 Wide band wireless 300-2000mhz 50W 100W power amplifier jammer module for FPV drone system 7
