New design Long Range 5km Outdoor Drone Detector 7006300MHz With 360Degree Detection For FPV And OFDM Signals

New design Long Range 5km Outdoor Drone Detector 7006300MHz With 360Degree Detection For FPV And OFDM Signals

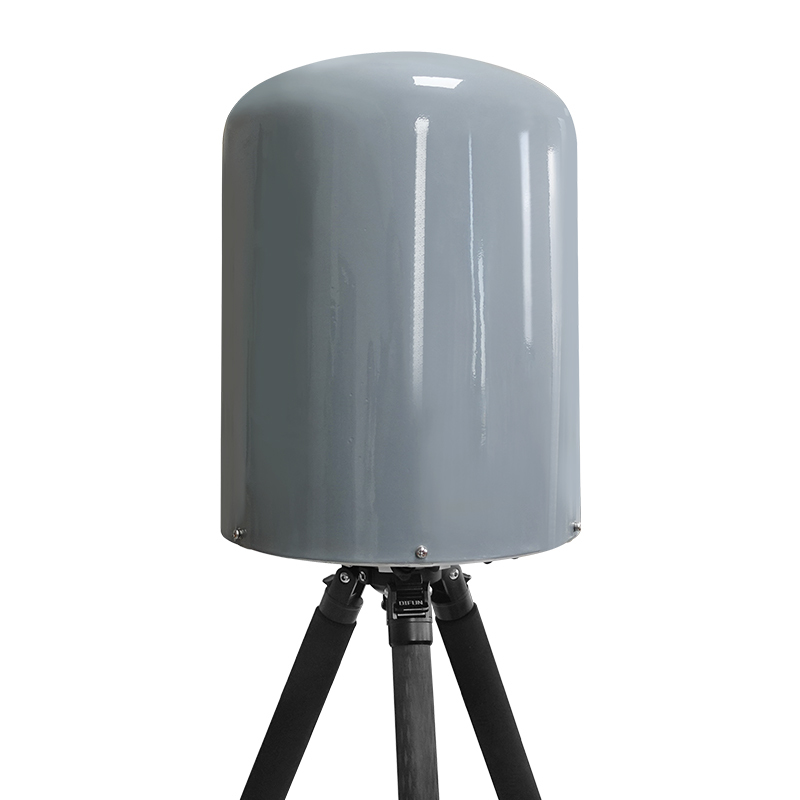

New design Long Range 5km Outdoor Drone Detector 7006300MHz With 360Degree Detection For FPV And OFDM Signals New design Long Range 5km Outdoor Drone Detector 7006300MHz With 360Degree Detection For FPV And OFDM Signals New design Long Range 5km Outdoor Drone Detector 7006300MHz With 360Degree Detection For FPV And OFDM Signals New design Long Range 5km Outdoor Drone Detector 7006300MHz With 360Degree Detection For FPV And OFDM Signals New design Long Range 5km Outdoor Drone Detector 7006300MHz With 360Degree Detection For FPV And OFDM Signals
Informazioni di base
Luogo di origine: Shenzhen China
Marca: TeXin
Certificazione: CE ISO
Numero di modello: TX-DETECTOR
Quantità di ordine minimo: 1
Prezzo: Negoziabile
Imballaggi particolari: Casa durevole
Tempi di consegna: 10-15 giorni
Termini di pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione: 100/mese
Miglior prezzo Contattaci
Informazioni dettagliate
Nome: Rivelatore Intervallo di rilevamento regolare: 5 km （buon ambiente radio）
Bande di frequenza di rilevamento: 0.7-6.3GHz/ 2,4-2,5 GHz/ 5.15-5,95 GHz Angolo di rilevamento: 360 °
Distanza di rilevamento: ＞ 2km (OFDM) ＞ 4 km (FPV 5,8G/2W) Alimentazione elettrica: DC 4,75 ~ 36V
Grado di protezione: IP65 Temp: 40 ~ +70 ℃
Evidenziare:

long range drone detector

,

outdoor drone signal detector

,

360 degree FPV drone detector

Descrizione di prodotto

New design Long Range 5km Outdoor Drone Detector 7006300MHz With 360Degree Detection For FPV And OFDM Signals

This detector boasts an impressive 5km detection range—far exceeding standard consumer-grade detectors. Whether in open fields, industrial complexes, or large event venues, it can identify approaching drones at an early stage, providing ample time for security personnel to assess the situation, issue alerts, and take response measures.

Our detector addresses this by covering an extensive frequency spectrum of 700-6300MHz—a range that encompasses most common drone communication and control bands. This product features 360° omni-directional detection capability. Its specially designed antenna array ensures uniform signal reception across all angles.

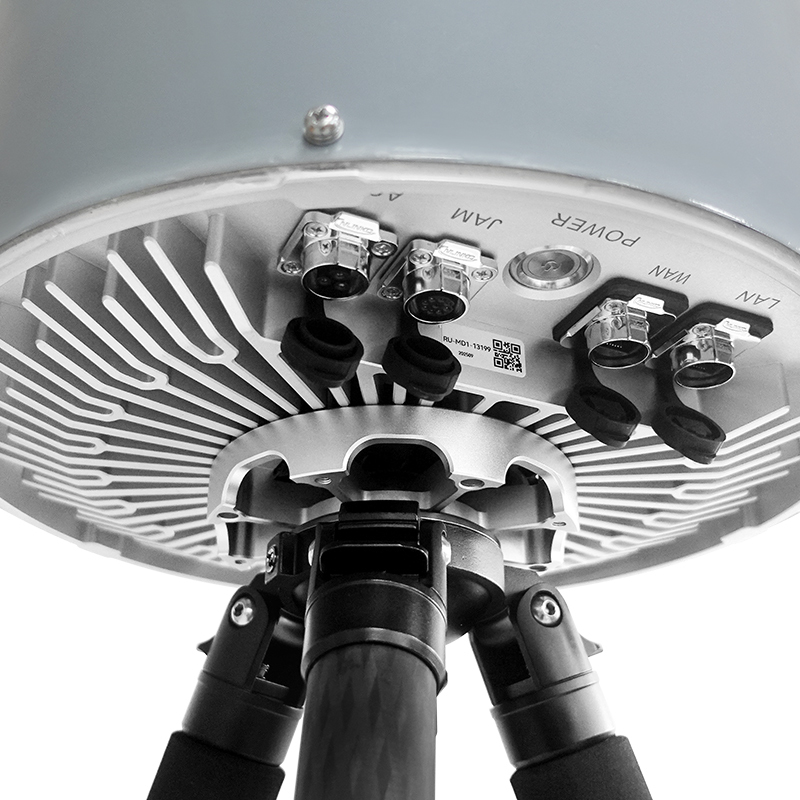

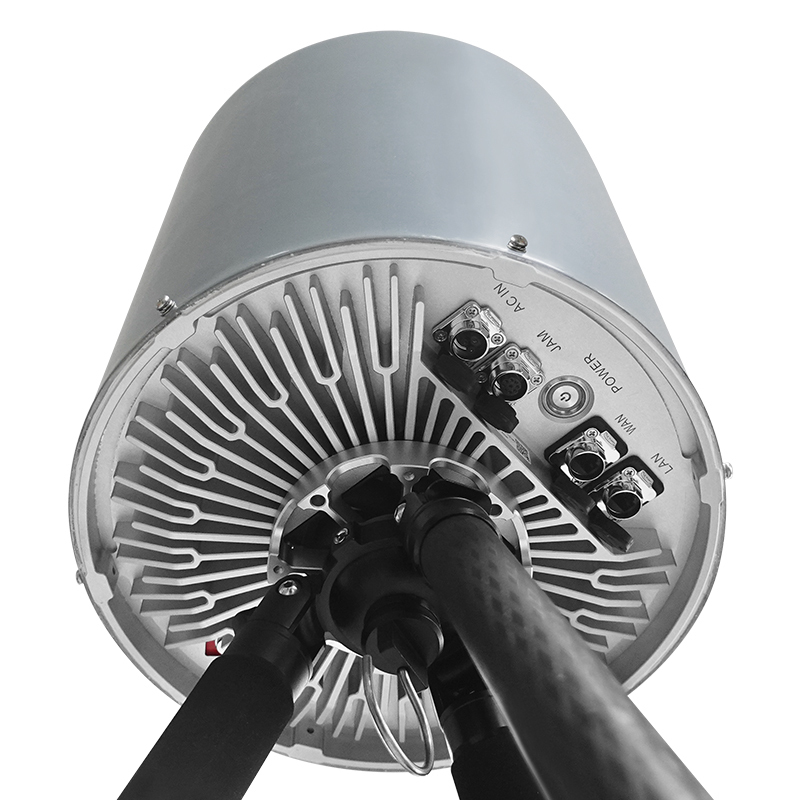

New design Long Range 5km Outdoor Drone Detector 7006300MHz With 360Degree Detection For FPV And OFDM Signals 0 New design Long Range 5km Outdoor Drone Detector 7006300MHz With 360Degree Detection For FPV And OFDM Signals 1
Product Specification
Regular detection range 5km (Good radio environment)
Detection frequency bands 0.7-6.3GHz/ 2.4-2.5GHz/5.15-5.95GHz
Identify Type FPV Simulation Image Transmission OFDM HD Image Transmission
Detection angle 360°
Sensitivity Better than -96dBm (FPV signal Bw=6MHz) Better than -90dBm (OFDM signal Bw=20MHz)
Detection distance ＞2km (OFDM) ＞4km (FPV 5.8G/2W) (The measured reliable distance when using a 2dBi gain receiving antenna. The actual antenna gain increases by 6dB, and the detection distance can be doubled.)
UART Parameters 115.2kbps/TTL3~5V compatible
Power supply DC 4.75 ~36V
Power consumption ＜3.5W
Weight 13.2kg
Volume 470mm x 352mm
Protection grade IP65
Working temp -40 ~ +70℃
Features
  • 700-6300MHz full air space detection
  • Detecting distance around 5km (Increasing antenna gain can extend the detection distance)
  • Can extract drone signals under noise interference level (SNR -10 ~ -15dB)
  • Analysis DJI FPV date Including pilot location, blacklist and whitelist, connect to Bluetooth to update the firmware
  • Provide FPV drone video image output, connect to Bluetooth to update the firmware
Application
New design Long Range 5km Outdoor Drone Detector 7006300MHz With 360Degree Detection For FPV And OFDM Signals 2
FAQ
1. Are you a manufacturer?
Yes, our factory is located in Longgang District, Shenzhen, welcome to visit us here
2. MOQ?
1 to 100pcs
3. Payment term?
T/T, Alibaba Trade Assurance(Visa, Master card, E-checking,etc), WestUnion, Paypal, etc
4. How to proceed with an order?
A. Let us know your requirements and product application through inquiry on Alibaba website B. We quote according to your specification C. Customers agree with the quotation and make the payment
5. What do if I receive defective products?
Our strict quality control will ensure a 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you a new electronic part or product.

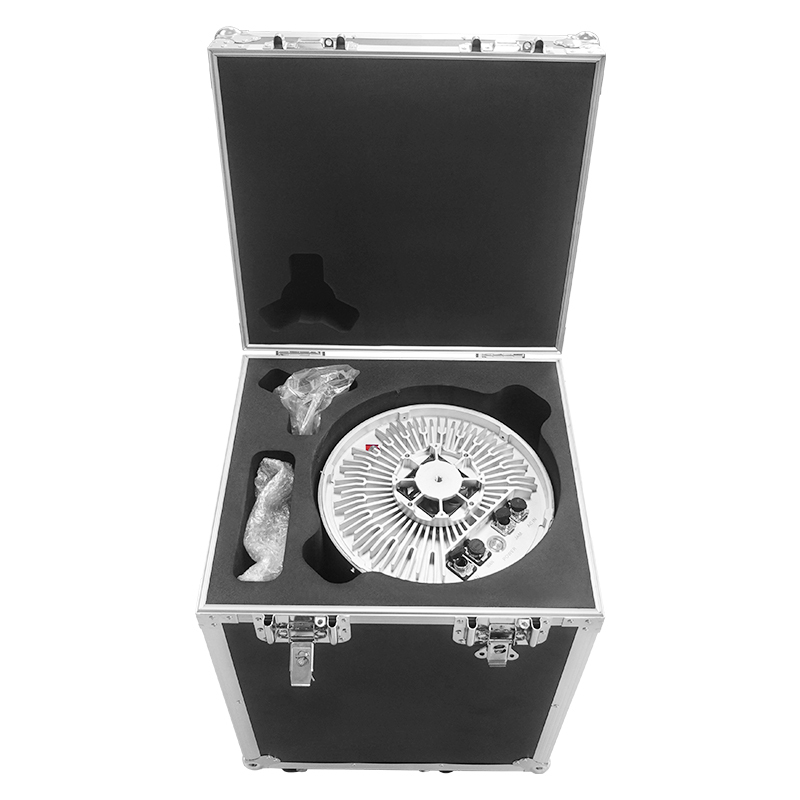

New design Long Range 5km Outdoor Drone Detector 7006300MHz With 360Degree Detection For FPV And OFDM Signals 3 New design Long Range 5km Outdoor Drone Detector 7006300MHz With 360Degree Detection For FPV And OFDM Signals 4
