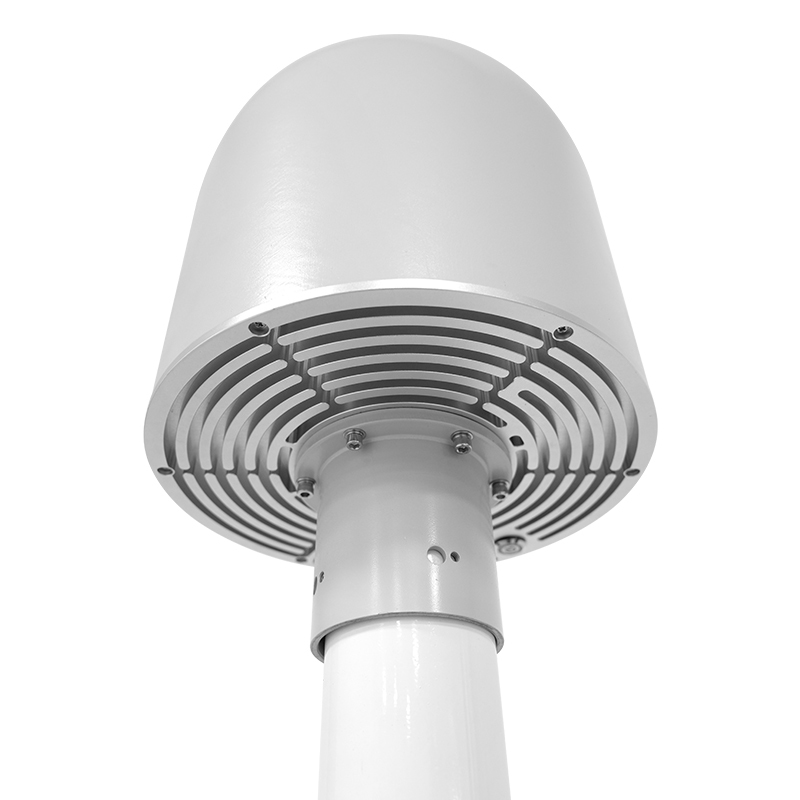

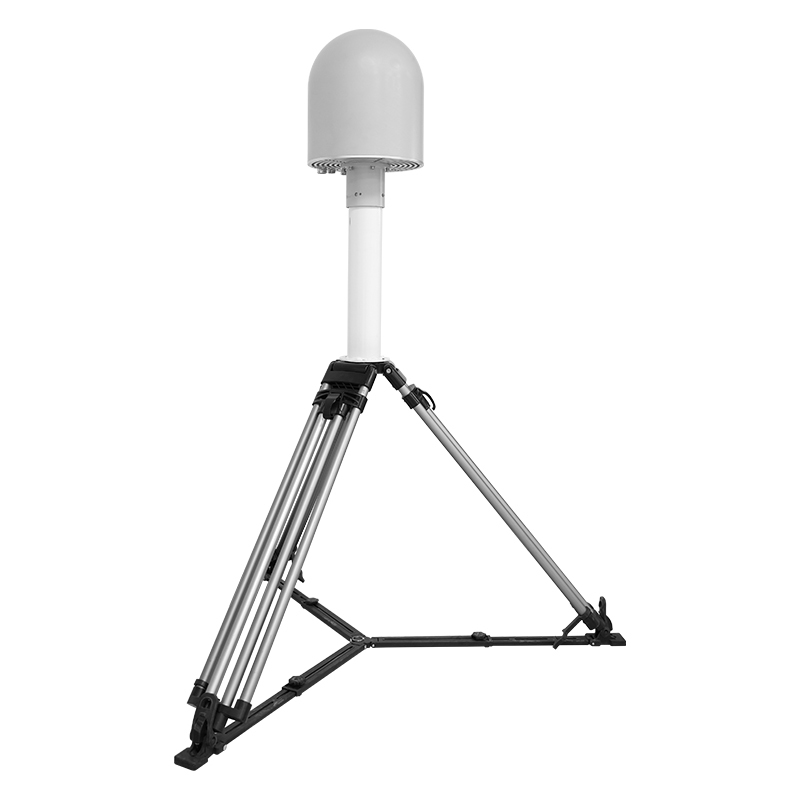

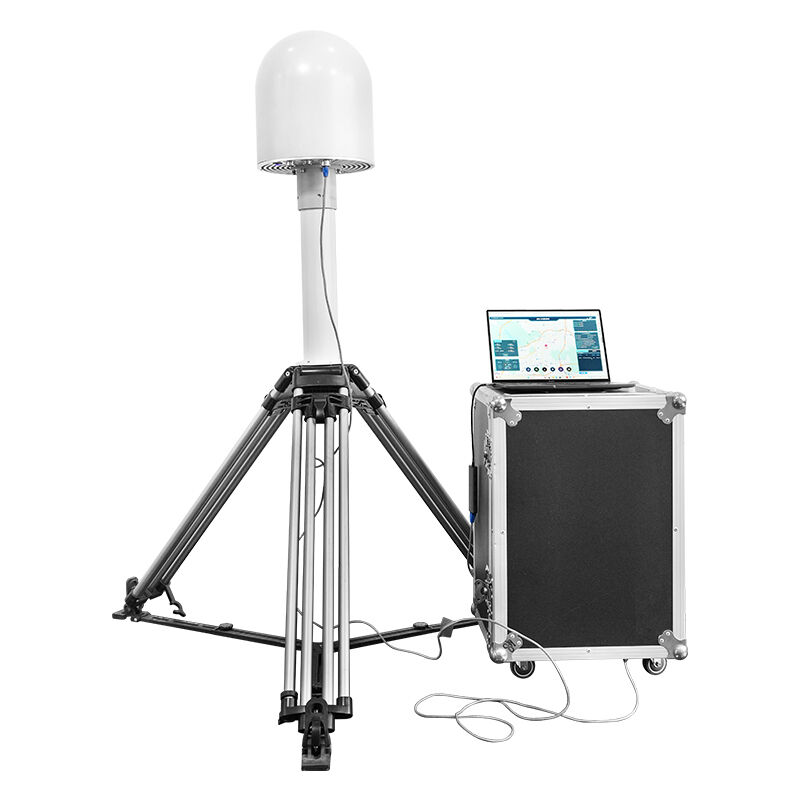

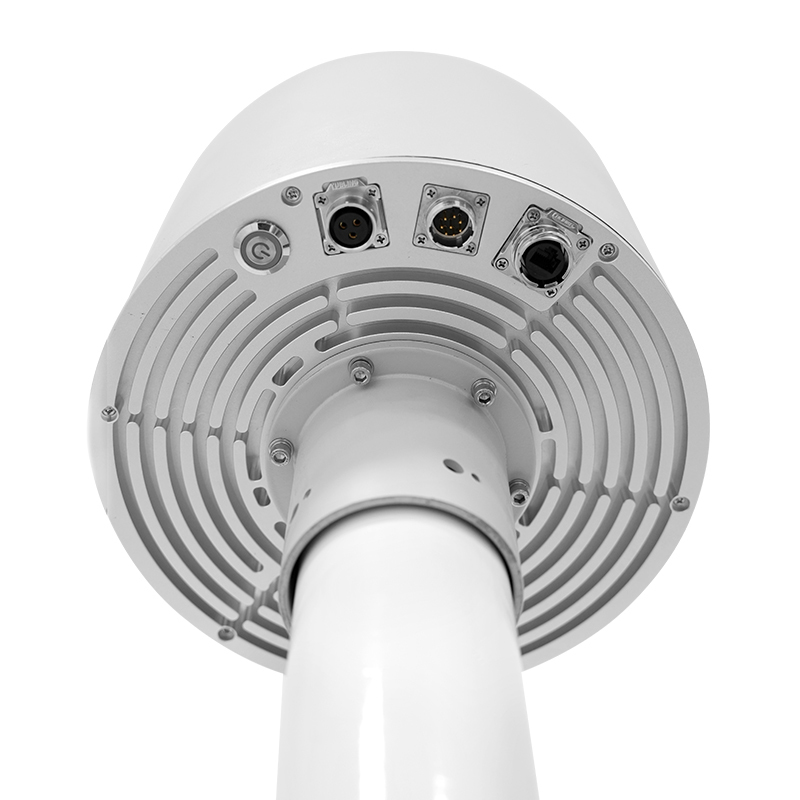

Software-adjustable, fixed drone detector with bracket 700-6300MHz bands

Software-adjustable, fixed drone detector with bracket 700-6300MHz bands
Software-adjustable, fixed drone detector with bracket 700-6300MHz bands
Software-adjustable, fixed drone detector with bracket 700-6300MHz bands Software-adjustable, fixed drone detector with bracket 700-6300MHz bands Software-adjustable, fixed drone detector with bracket 700-6300MHz bands Software-adjustable, fixed drone detector with bracket 700-6300MHz bands
Informazioni di base
Luogo di origine: Guang Dong CINA
Marca: TX TELSIG
Certificazione: CE ISO
Numero di modello: TX-JZTC01
Documento: Factory introduction.pdf
Quantità di ordine minimo: 1
Prezzo: Negoziabile
Imballaggi particolari: Caso o scatola durevole
Tempi di consegna: 5-8 giorni
Capacità di alimentazione: 10000 pezzi al mese
Miglior prezzo Contattaci
Informazioni dettagliate
Tipo: Rilevatore di droni controllato da software Intervallo di rilevamento: 360 gradi
Distanza: 10 km Tipo di drone rilevatore: UAV senza pilota
Applicazione: All'aperto Frequenza: 800 MHz 900 MHz 5,2 GHz 5,8 GHz
Grado IP: Scocca IP65
Evidenziare:

software-adjustable drone detector

,

fixed drone detector with bracket

,

drone signal detector 700-6300MHz

Descrizione di prodotto

Software-adjustable, fixed drone detector with bracket 700-6300MHz bands
Our Software-Adjustable Fixed Drone Detector is a professional low-altitude airspace security device designed for long-term fixed deployment. Equipped with a dedicated mounting bracket for stable installation on roofs, towers, or other high-altitude positions, it features a software-adjustable frequency range of 700-6300MHz, covering all mainstream drone communication bands. This enables flexible tuning of detection frequency according to on-site electromagnetic environments and detection needs.
Software-adjustable, fixed drone detector with bracket 700-6300MHz bands 0 Software-adjustable, fixed drone detector with bracket 700-6300MHz bands 1 Software-adjustable, fixed drone detector with bracket 700-6300MHz bands 2
Technical Specifications
Regular detection range 5km (Good radio environment)
Detection frequency bands 0.7-6.3GHz / 2.4-2.5GHz / 5.15-5.95GHz
Identify Type FPV Simulation Image Transmission OFDM HD Image Transmission
Detection angle 360°
Sensitivity Better than -96dBm (FPV signal Bw=6MHz)
Better than -90dBm (OFDM signal Bw=20MHz)
Detection distance ＞2km (OFDM)
＞4km (FPV 5.8G/2W)
(The measured reliable distance when using a 2dBi gain receiving antenna. The actual antenna gain increases by 6dB, and the detection distance can be doubled.)
UART Parameters 115.2kbps/TTL3~5V compatible
Power supply DC 4.75 ~36V
Power consumption ＜3.5W
Weight 25kg
Volume 330mm x 330mm x 330mm
Protection grade IP65
Working temperature -40 ~ +70℃
Key Features
  • Customizable Frequency Tuning: 700-6300MHz software-adjustable, flexible adaptation to different electromagnetic environments, reducing interference and improving detection accuracy.
  • Stable Fixed Installation: Dedicated aluminum alloy bracket, easy to install, corrosion-resistant and wind-resistant, suitable for long-term outdoor deployment.
  • Full-Band & High Sensitivity: Covers all mainstream drone bands, high-sensitivity detection of small FPV drones and DIY drones, no missed detection.
  • Intelligent & Efficient: White & black list management reduces false alarms; remote control and alert push improve security work efficiency.
  • Durable & Reliable: IP66 waterproof and dustproof, -40℃ to 60℃ operating temperature, 24/7 uninterrupted operation, low maintenance cost.
After Sales Service
  • User Instruction: We offer online details photo illustration and video; local instruction is also available but with extra cost
  • Online Technical Support: Our professional engineers will assist customers with technical problems
  • Quality Assurance: Our company will perform the agreed responsibility and duty during the warranty period
  • Fast Reply: Quick response to customer feedback and questions
  • Warranty: All products enjoy 1 year warranty and lifetime maintenance service
Why Choose Our Products?
  • More than 15 years in RF area
  • Own your own factory
  • 100% test before shipment
  • Have professional R&D team
  • Best service offered
  • Well-known Chinese brand, quality guaranteed
Frequently Asked Questions
What is the minimum order quantity?
Supports orders starting from one piece.
What payment methods are supported?
T/T, Alibaba, Paypal, USDT, Alipay, Wechat, etc.
Can I visit your factory?
Yes, our own factory is located in Shen Zhen China. Welcome!
